MT-TP-XF
Quick Specifications
| ◆ Volt: 208-480V | ◆ High uniformity of illumination |
| ◆ Frequency: 50/60Hz | ◆ Q90 life-time exceeds 50 000hrs |
| ◆ Watts: 660W | ◆ Precise light spectrum |
| ◆ Current at 208V: 3.34A | ◆ Integrated design, compact structure with efficient heat dissipation |
| ◆ Current at 277V: 2.51A | ◆ Max Ambient Temp: 40℃ |
| ◆ Current at 347V: 2.0A | ◆ Weight: 9.5kg / 21.02lb |
| ◆ Current at 480V: 1.44A | |
| ◆ Power factor >0.95 |
Certification

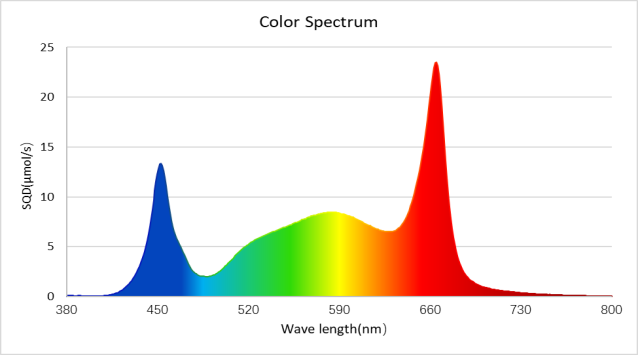

Spectral Distribution
Product Specifications
| Model |
Growth Spectrum |
Beam Angle |
Input Voltage |
PPF μmol/s |
PPE μmol/J |
Input Watts |
IP Rating |
Control |
| MT-TP-XF | Full Spectrum | 130° | AC208-480V | 2050 | 3.1 | 660W | IP66 | Wired |

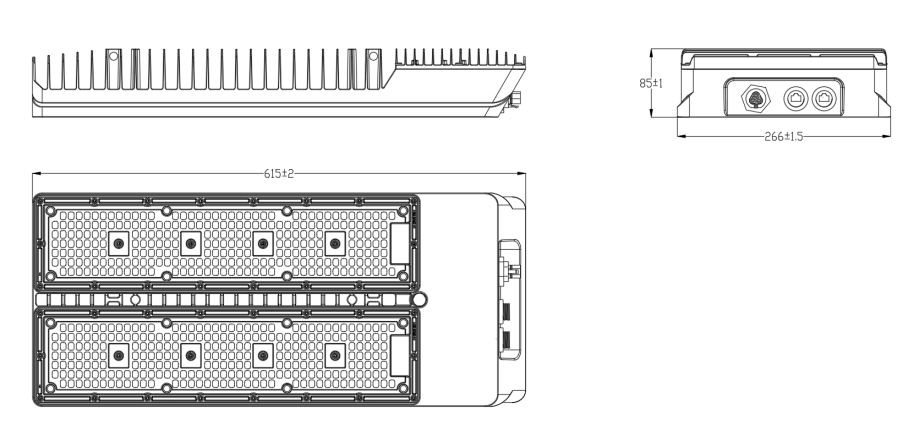

Dimensions
Packaging Information
| Model |
Carton Size |
N.W per carton |
G.W per carton |
Quantity per pallet |
40'GP |
| MT-TP-XF | 625*267*95mm | 9.5kg / 21.02lb | 10.3kg / 22.71lb | 90PCS | 1800 PCS |
